Carrier Tape Technologies

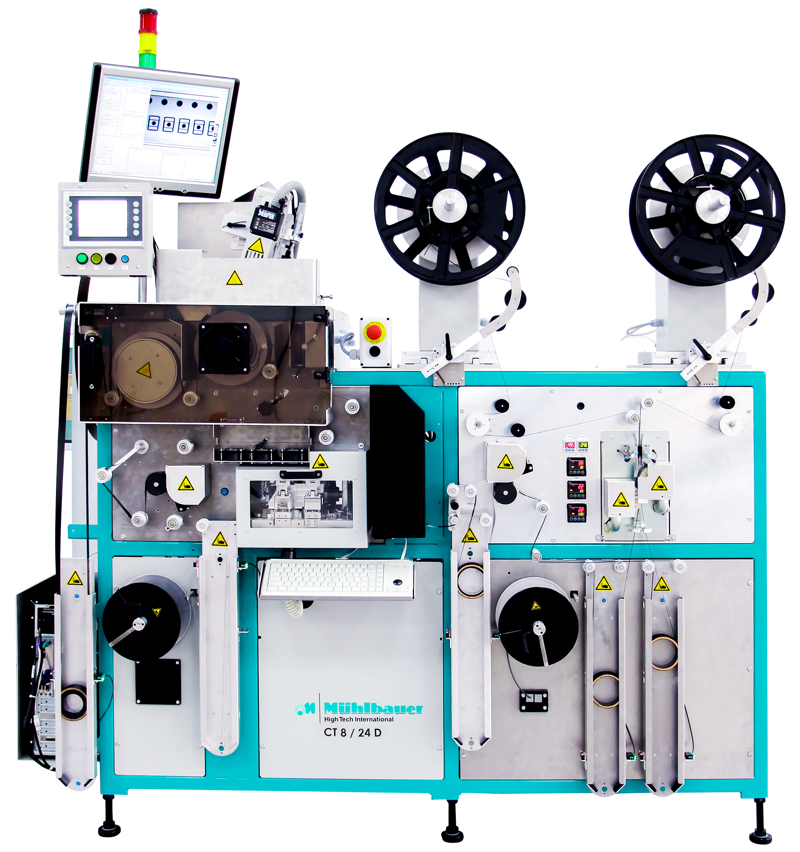

CT 8/24 D
Rotary tape formating system
with dual-row option
HIGH THROUGHPUT
<600 m/h depending on process, cavity size & used material.
ONE PLATFORM. EVERY ROTARY APPLICATION
Supports positive and negative forming for tape widths from 8 mm – 24 mm.
PROVEN DUAL-ROW FORMING TECHNOLOGY
In-house developed dual-row forming system for reliable, high-volume carrier tape production.
EFFICIENT & SIMPLIFIED OPERATION
Optional Muehlbauer Vision provides inline inspection for consistent process reliability.

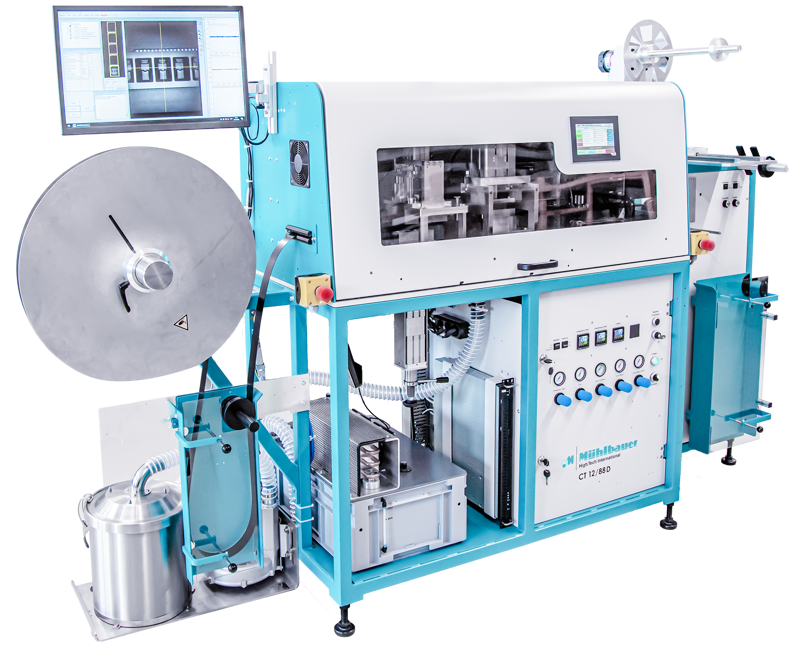

CT 12/88D
Linear tape formating system
WITH DUAL-ROW OPTION
MAXIMUM TAPE FLEXIBILITY
Processes carrier tapes from 12 mm up to 88 mm on one versatile platform.
LOW TOOLING COSTS WITH EASY STRUCTURE FOR MAXIMUM EFFICIENCY
Optimized machine design minimizes tooling costs while maximizing productivity.
OPTIONAL “DEEP POCKET STAMPING“
Optional Deep Pocket Stamping enables cavity depths of up to 30 mm.
NEXT-GENERATION LINEAR FORMING
4th generation technology engineered for today‘s semiconductor production demands.

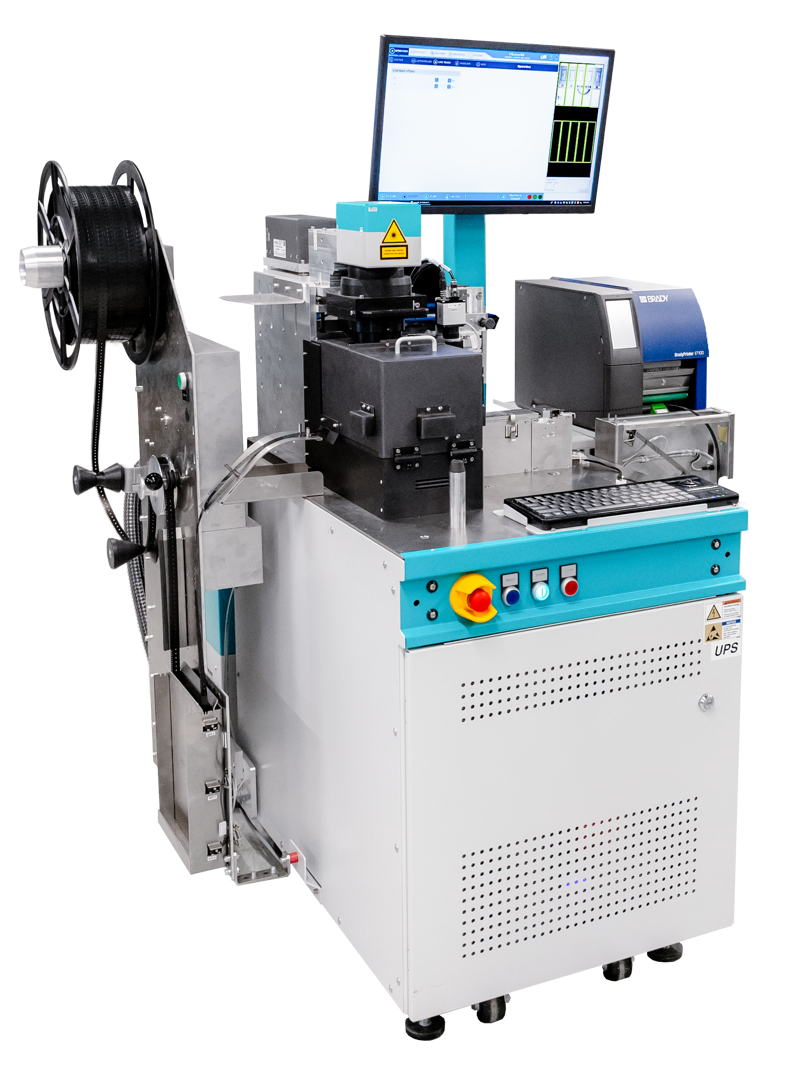

CT LM/D1
Laser marking
MICRON-PRECISE LASER MARKING
Laser engraves Data Matrix Codes with a 0.1 mm dot size for complete traceability.
INLINE CODE VERIFICATION
Integrated vision system verifies code position and readability during production.
ULTRA-FINE D1 LASERING
Creates D1 vacuum holes down to 0.08 mm with exceptional precision.
SEAMLESS INLINE INTEGRATION
Operates directly within existing carrier tape production lines without interrupting production.
