Sheet collating is the preparation step for the lamination process. Several sheet layers e.g. the core layer, printed sheets, inlays or antennas are collated, aligned and welded by the welding system.
Mühlbauer's Sheet Collating Systems

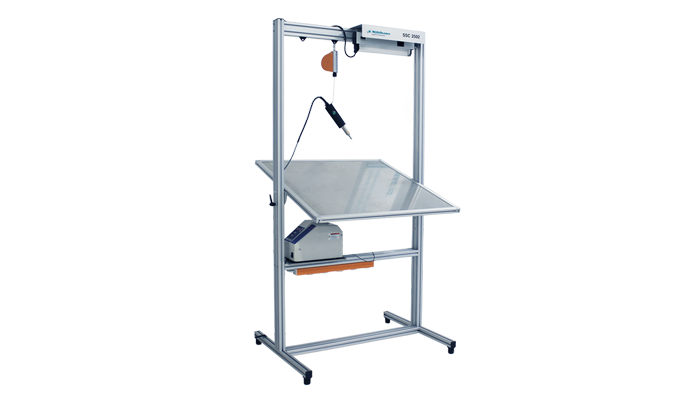

SSC 2502 - SSC 2502/1
- Semi-automatically operated collating system for individual sheet layers & security layers
- Suitable for standard collating tasks & security applications
- Smallest footprint requirements & easiest operation
- Easy set-up & maintenance
- MB INCAPE ready
- Up to 100 sheets per hour

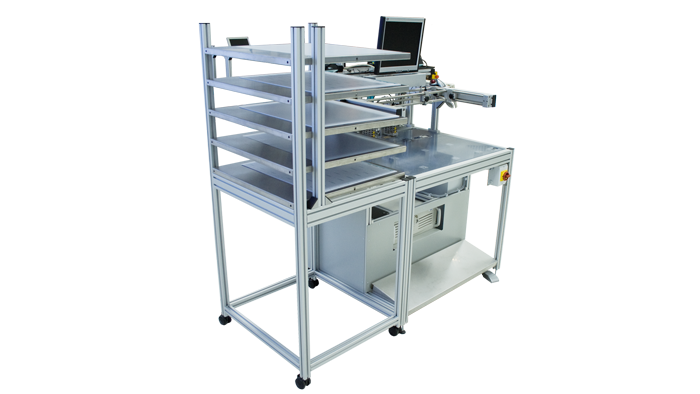

SSC 2700
- Semi-automatic collating system for individual sheet layers & security layers
- Suitable for standard collating tasks & for security applications which require vision-controlled positioning processes
- Most precise vision-controlled alignment of sheet layers
- Smallest footprint requirements & easy operation
- MB INCAPE ready
- Up to 100 sheets per hour
SSC 200
- Semi-automatic collating system based on reel-to-sheet process
- Automatic feeding & positioning for overlay from reel
- Automatic transport & cutting system
- Manual feeding & alignment to reference edges of core layers in sheet format
- Easy handling & maintenance
- MB INCAPE ready
- Up to 400 sheets per hour

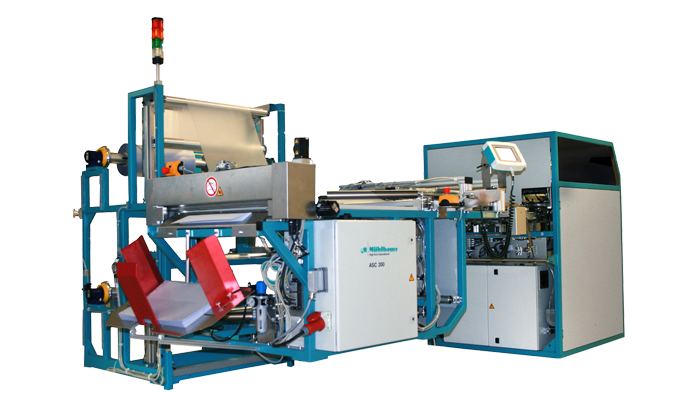

ASC 200
- Automatic sheet collating system for individual sheet layers & security layers
- Reel-to-sheet handling system for overlay foils
- Sheet-to-sheet handling system for core layers
- Output stacker for collated & prefixed sheet sets
- Modular design, on-site upgrades & extension possible
- Easy set-up & maintenance
- MB INCAPE ready
- Up to 400 sheets per hour

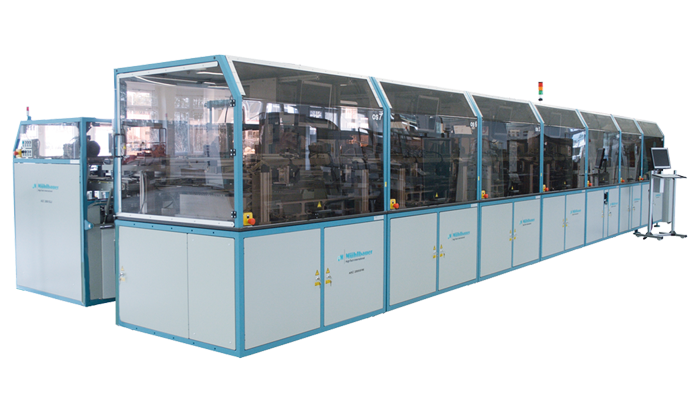

ASC 2900
- Automatic high-speed sheet collating system
- Sheet-to-sheet & reel-to-sheet handling system available
- High-precision alignment by camera systems
- Proven solution for high-end products like security documents & contactless cards
- Sheet-to-sheet handling system for core layers
- Output of collated & pre-fixed sheet to stacker system
- Modular design, on-site upgrades & extension possible
- MB INCAPE ready
- Up to 600 sheets per hour
